PART NO: *Multiton TM, M & J Hand Control Hydraulic Unit

*Multiton TM, M & J Hand Control Hydraulic Unit

Line Drawing

Be sure to log in with your account to get the best price available.

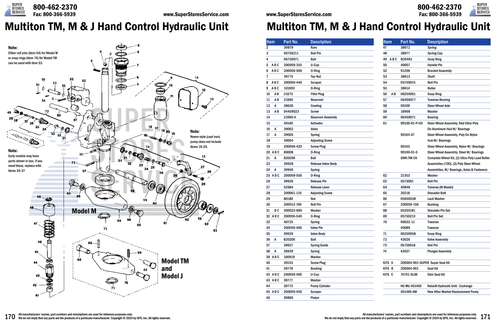

Multiton TM, M & J Hand Control Hydraulic Unit Line Drawing

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. MU 39879 Ram
  2. MU 05750211 Roll Pin
  3. MU 06750071 Ball
  4. MU 200059-310 U-Cup
  5. MU 200059-500 O-Ring
  6. MU 39775 Top Nut
  7. MU 200059-440 Scraper
  8. MU 101003 O-Ring
  9. MU 21675 Filler Plug
  10. MU 21660 Reservoir
  11. MU 38630 Cowling
  12. MU 04459023 Screw
  13. MU 21660-A Reservoir Assembly
  14. MU 40160 Activator
  15. MU 39002 Valve
  16. MU 39005 Spring
  17. MU 39004 Adjusting Screw
  18. MU 200059-420 Screw Plug
  19. MU 80008 O-Ring
  20. MU 820209 Ball
  21. MU 39928 Release Valve Body
  22. MU 39940 Spring
  23. MU 200059-550 O-Ring
  24. MU 39926 Release Pin
  25. MU 52684 Release Lever
  26. MU 200061-110 Adjusting Screw
  27. MU 80180 Nut
  28. MU 200013-760 Roll Pin
  29. MU 200023-600 Washer
  30. MU 200059-540 O-Ring
  31. MU 40725 Spring
  32. MU 200059-400 Valve Pin
  33. MU 39929 Valve Body
  34. MU 820206 Ball
  35. MU 39927 Spring Guide
  36. MU 39939 Spring
  37. MU 100919 Washer
  38. MU 39153 Screw Plug
  39. MU 39778 Bushing
  40. MU 200059-460 U-Cup
  41. MU 39777 Washer
  42. MU 39773 Pump Cylinder
  43. MU 200059-450 Scraper
  44. MU 39806 Piston
  45. MU 38972 Spring
  46. MU 38977 Spring Cap
  47. MU 820493 Snap Ring
  48. MU 40057 Handle Pin
  49. MU 06259058 Snap Ring
  50. MU 91206 Bracket Assembly
  51. MU 38613 Shaft
  52. MU 05759015 Roll Pin
  53. MU 38614 Roller
  54. MU 05759018 Roll Pin
  55. MU 06450077 Traverse Bearing
  56. MU 90109 Steer Wheel Axle
  57. MU 18968 Washer
  58. MU 06450071 Bearing
  59. Steer Wheel Assembly Options
  60. MU 21353 Washer
  61. MU 0575001 Roll Pin
  62. MU 40948 Traverse (M Model) (No Longer Available)
  63. MU 20218 Shoulder Bolt
  64. MU 05659038 Lock Washer
  65. MU 200059-150 Bushing
  66. MU 05250181 Shoulder Pin Set
  67. MU 05750213 Roll Pin Assembly
    MU 200013-620 Roll Pin
  68. MU 90032-11 Traverse
    MU 40089 Traverse
  69. MU 40160 Activator
  70. MU 43027 Plunger Assembly
  71. MU 43026 Valve Assembly
  72. MU 06259051 Snap Ring


    Kit(s):
