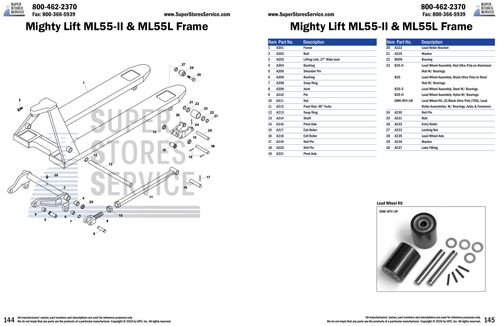

Identify your part using this line drawing of the frame.
Locate a part on the hydraulic unit.
- ML A201 Frame
- ML A202 Bolt
- ML A203 Lifting Link
- ML A204 Bushing
- ML A205 Shaft
- ML A206 Bushing
- ML A208 Snap Ring
- ML A209 Joint
- ML A210 Pin
- ML A211 Nut
- ML A212 Push Rod
- ML A213 Snap Ring
- ML A214 Shaft
- ML A216 Shaft
- ML A217 Exit Roller
- ML A218 Exit Roller
- ML A219 Roll Pin
- ML A220 Roll Pin
- ML A221 Shaft
- ML A222 Load Roller Bracket
- ML A225 Washer
- ML B009 Bearing
- Load Wheel Assembly Options
- ML A230 Roll Pin
- ML A231 Bolt
- ML A232 Entry Roller
- ML A233 Locking Nut
- ML A235 Load Wheel Axle
- ML A236 Washer
- ML A237 Lube Fitting
